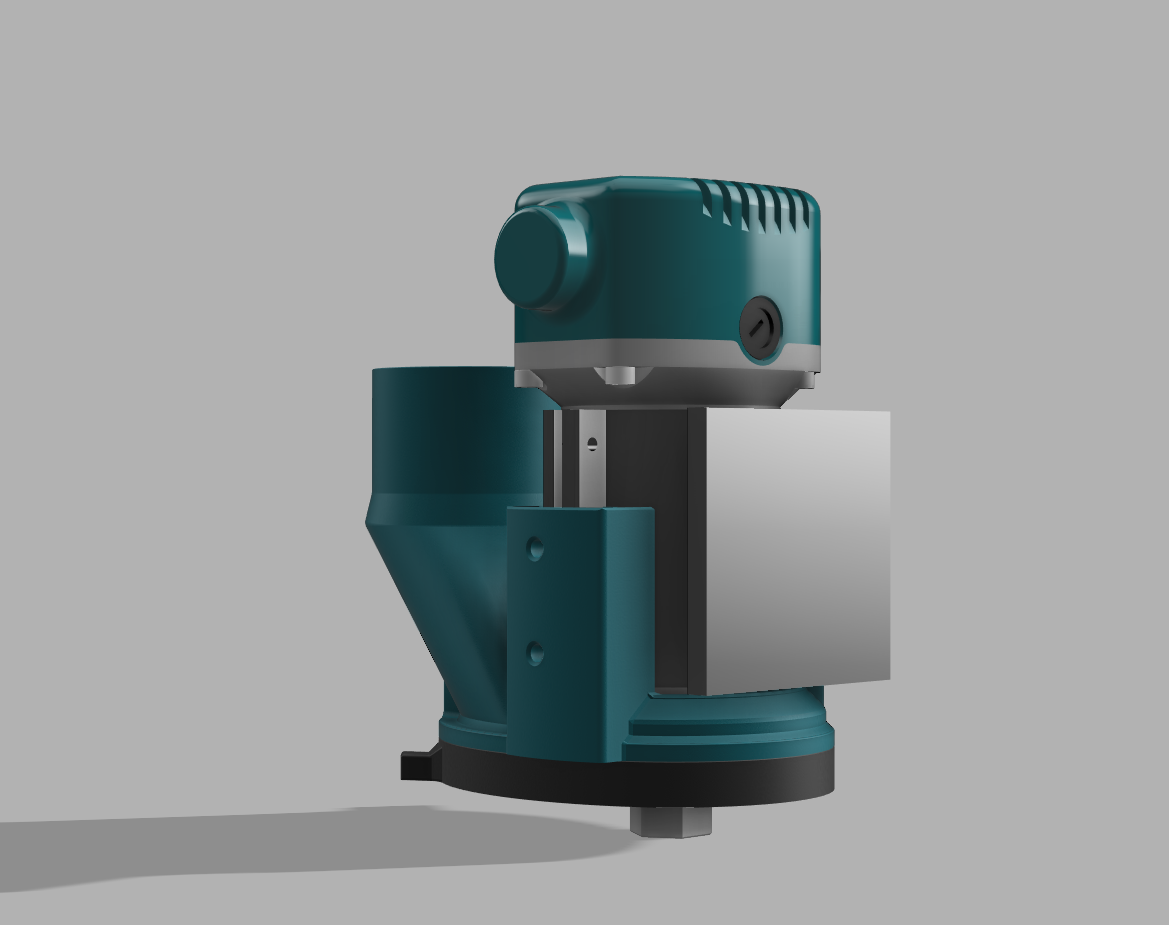

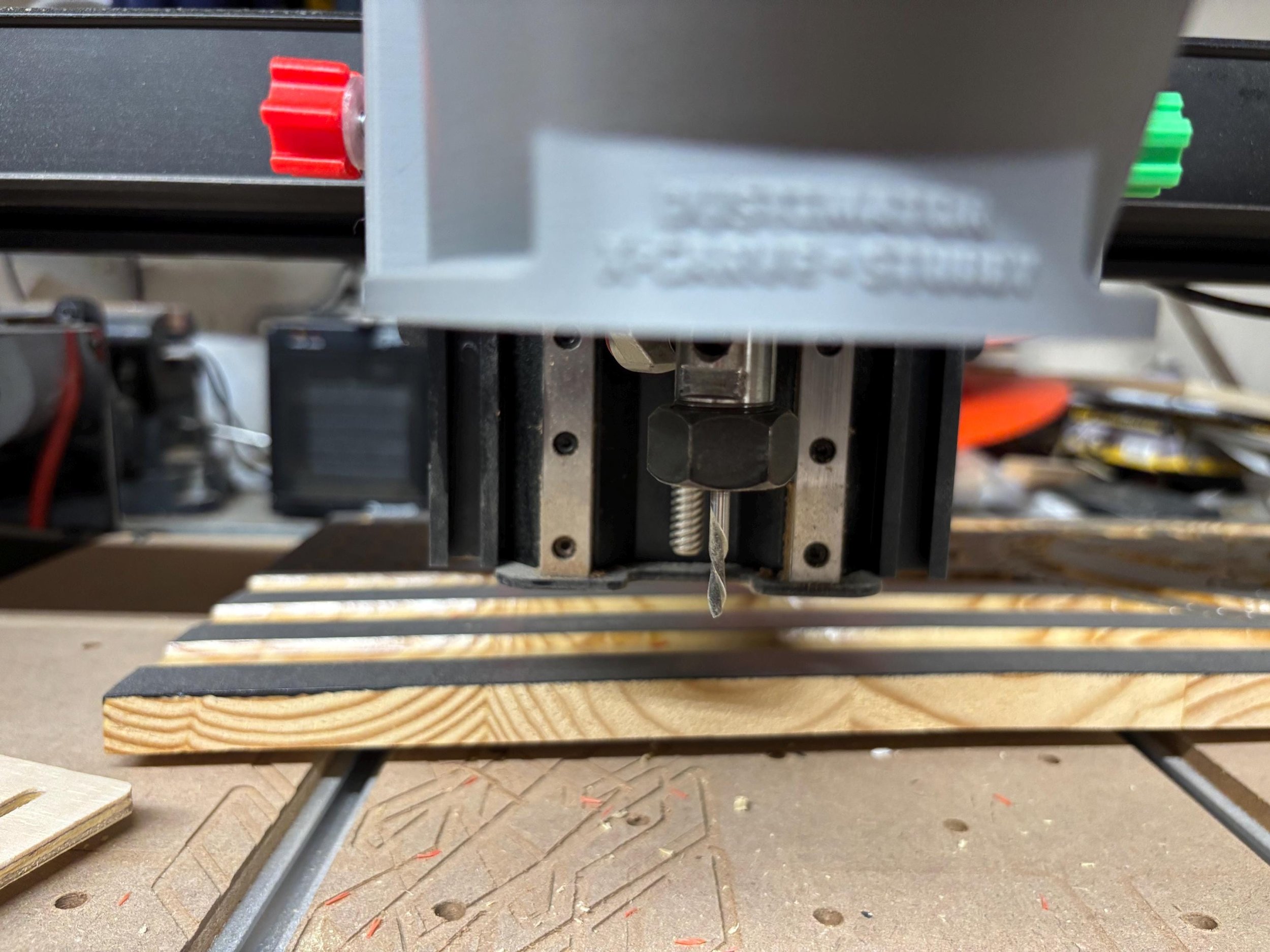

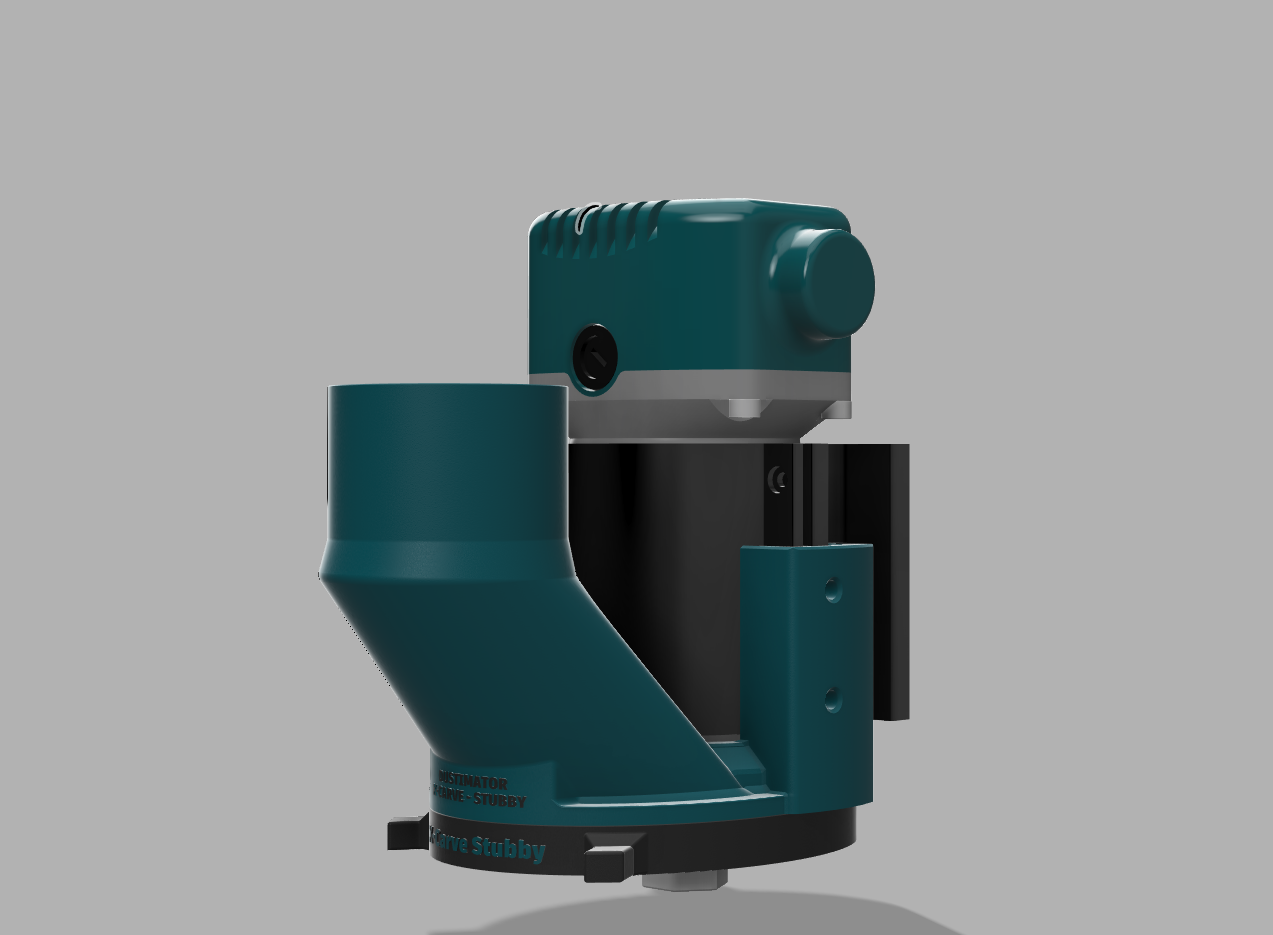

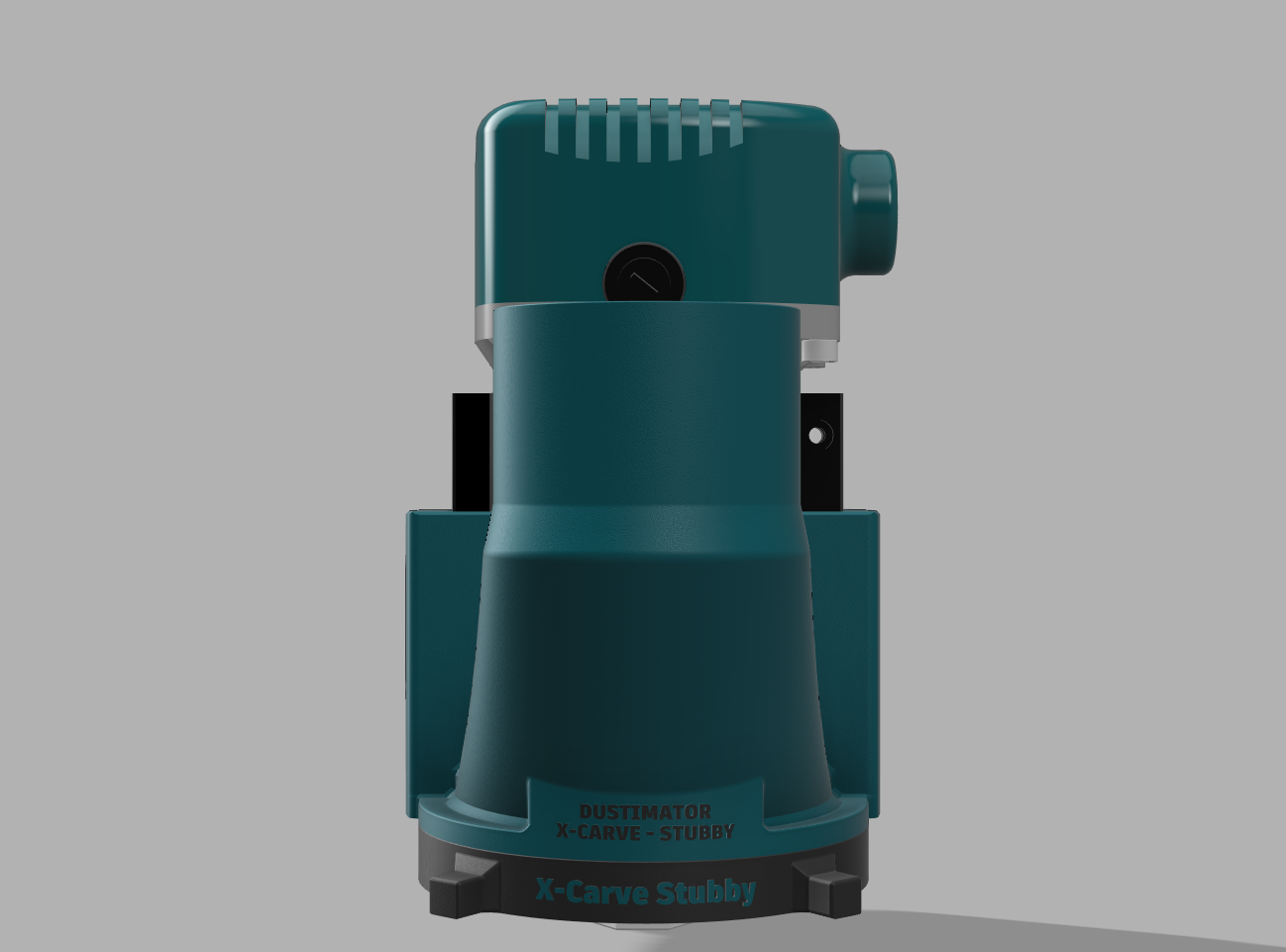

X-Carve CNC Dustimator (stubby)

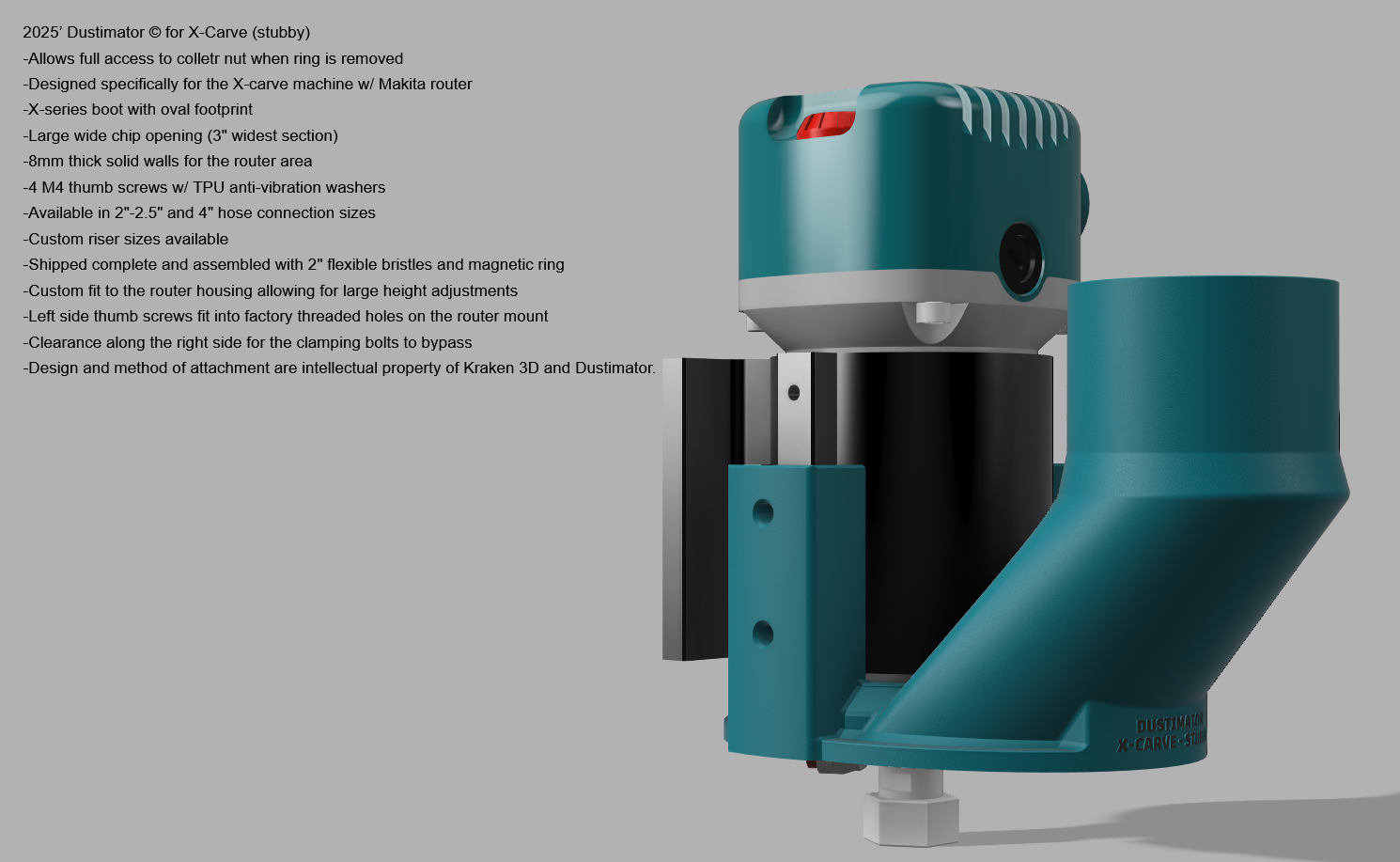

2025’ Dustimator © for X-Carve (stubby)

• Allows full access to colletr nut when ring is removed

• Designed specifically for the X-carve machine w/ Makita router

• X-series boot with oval footprint

• Large wide chip opening (3" widest section)

• 8mm thick solid walls for the router area

• 4 M4 thumb screws w/ TPU anti-vibration washers

• Available in 2"-2.5" and 4" hose connection sizes

• Custom riser sizes available

• Shipped complete and assembled with 2" flexible bristles and magnetic ring

• Custom fit to the router housing allowing for large height adjustments

• Left side thumb screws fit into factory threaded holes on the router mount

• Clearance along the right side for the clamping bolts to bypass

• Design and method of attachment are intellectual property of Kraken 3D and Dustimator.
